Phase hybride 220 VCA 1.3A-7A du conducteur 3 de moteur pas à pas de JK3MD2207 Digital

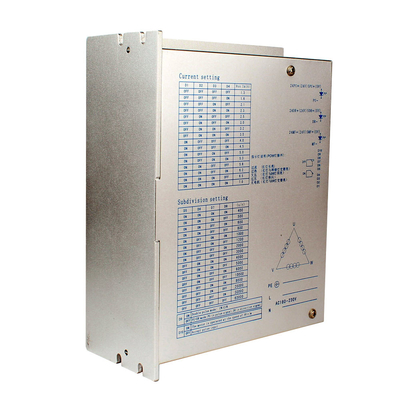

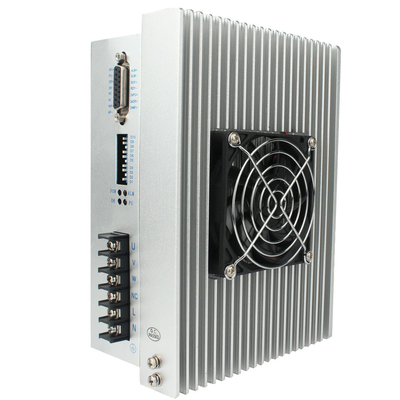

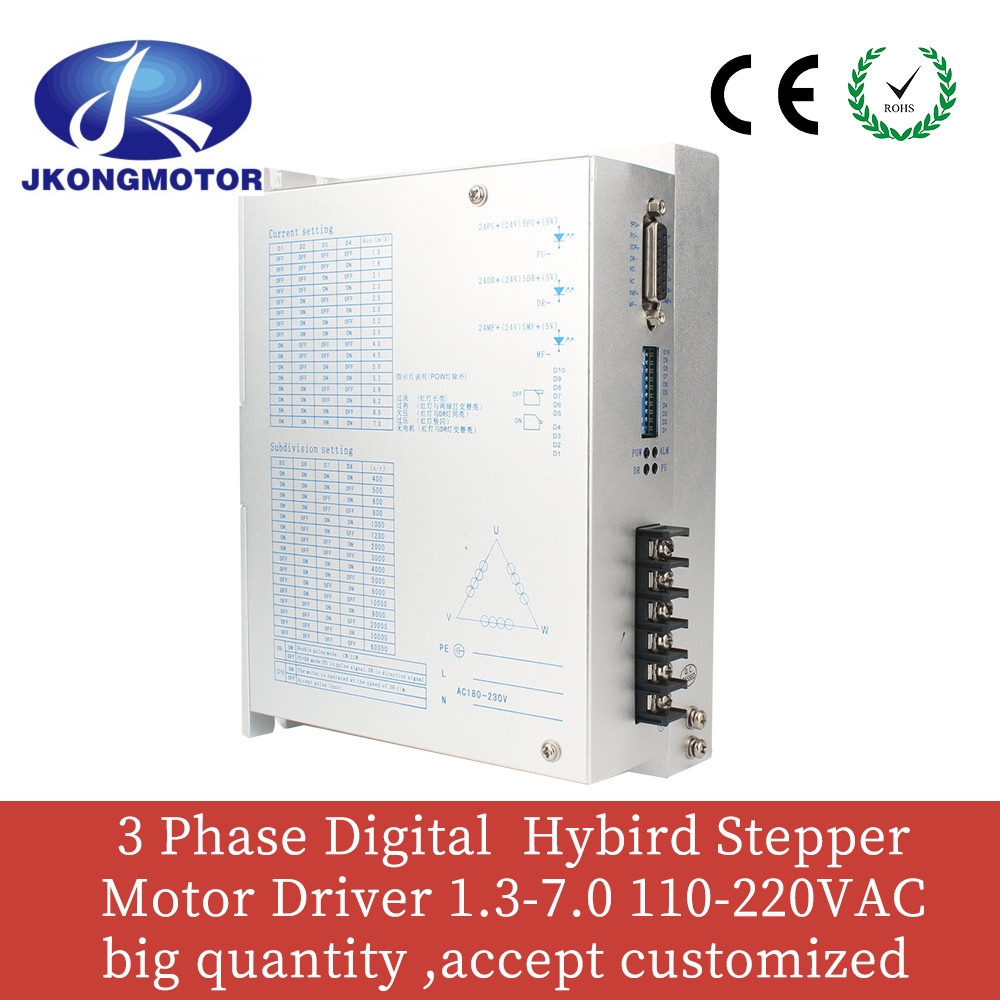

3phase 110-220 VAC 1.3A-7A JK3MD2207 digital hybrid Stepper Motor Driver

JK3MD2207 is a type of 2 phase hybrid stepper motor driver , this driver input voltage is 110V~220V AC . suit for current less 7.0A, diameter is 110mm ,130mm 3 phase hybrid stepper motor . the motor run smoothly. It is widely used in CNC machine , robots,cutting machine,packing machine,plotter, engraving machine and so on.

 Features:

• supply voltage from 110VAC~220VAC
• Opto-isolated signal I/O
• Overvoltage, under voltage,overcurrent,phase short cicuit protection
• 16 channels subdivision and automatic idle-current reduction
• 16 channels output phase current setting
• low noise ,low hot
• mainly for 110mm and 130mm 3 phase stepper motor

Mechanical Specification:

• Input Voltage 110~220V AC
• Output current 1.3A~7.0A
• Temperature working temperature -10°~45°,stocking temperature ~20°~70°
• Humidity Not condensation , no water droplets
• Gas Prohibition of combustible gases and conductive dust
• Weight 2300g

CURRENT SETTING

Stepper driver working current is set by DIP switches D1 to D4.

SUBDIVISION (MICRO STEP) SETTING

The subdivision (micro step) is set by DIP switches D5 to D8, 16 channels in total. D9 and D10 are used to set the driver function.

I/O SIGNAL

All of the input signals are opto-isolated. To ensure the built-in high speed optocoupler effective, the drive capacity of current for control signal must be 15mA or more. Because of internal optocoupler current-limiting resistor, if input signal voltage of stepper driver is above 5V, please use external resistor R to limit current.

When input signal voltage is:

+5V: R1=0, R2=0;

+12V: R1=510Ω, R2=820Ω;

+24V: R1=1.2KΩ, R2=1.8KΩ
